Setup SNOM M300 DECT Station with AnyNode

Use SNOM DECT Phones with your AnyNode SBC

Posted by Henning on 16th Jan 2021

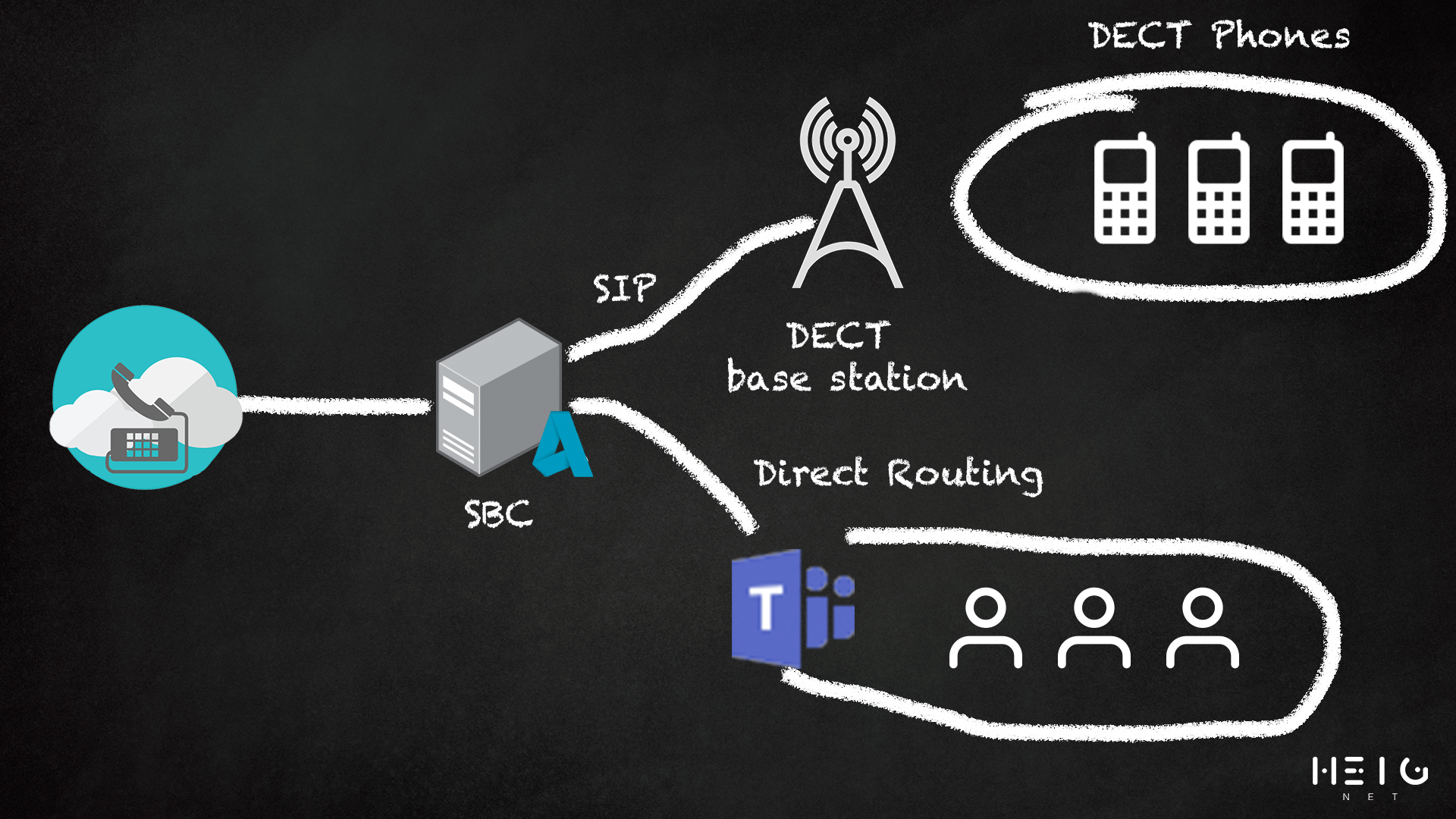

In this drawing can you see, a setup that we see at many customers. They have Microsoft Teams with "Direct Routing" and also want to use DECT Phones for people in the production envionment.

Overview

Software used

For the SBC AnyNode SBC is used. It connects to the SIP Registrar and to Microsoft Teams. The DECT Phones are connected to the SBC using SIP.

Setup

First we need to setup a SIP Registrar. Add a new node and choose SIP Registrar

Setup

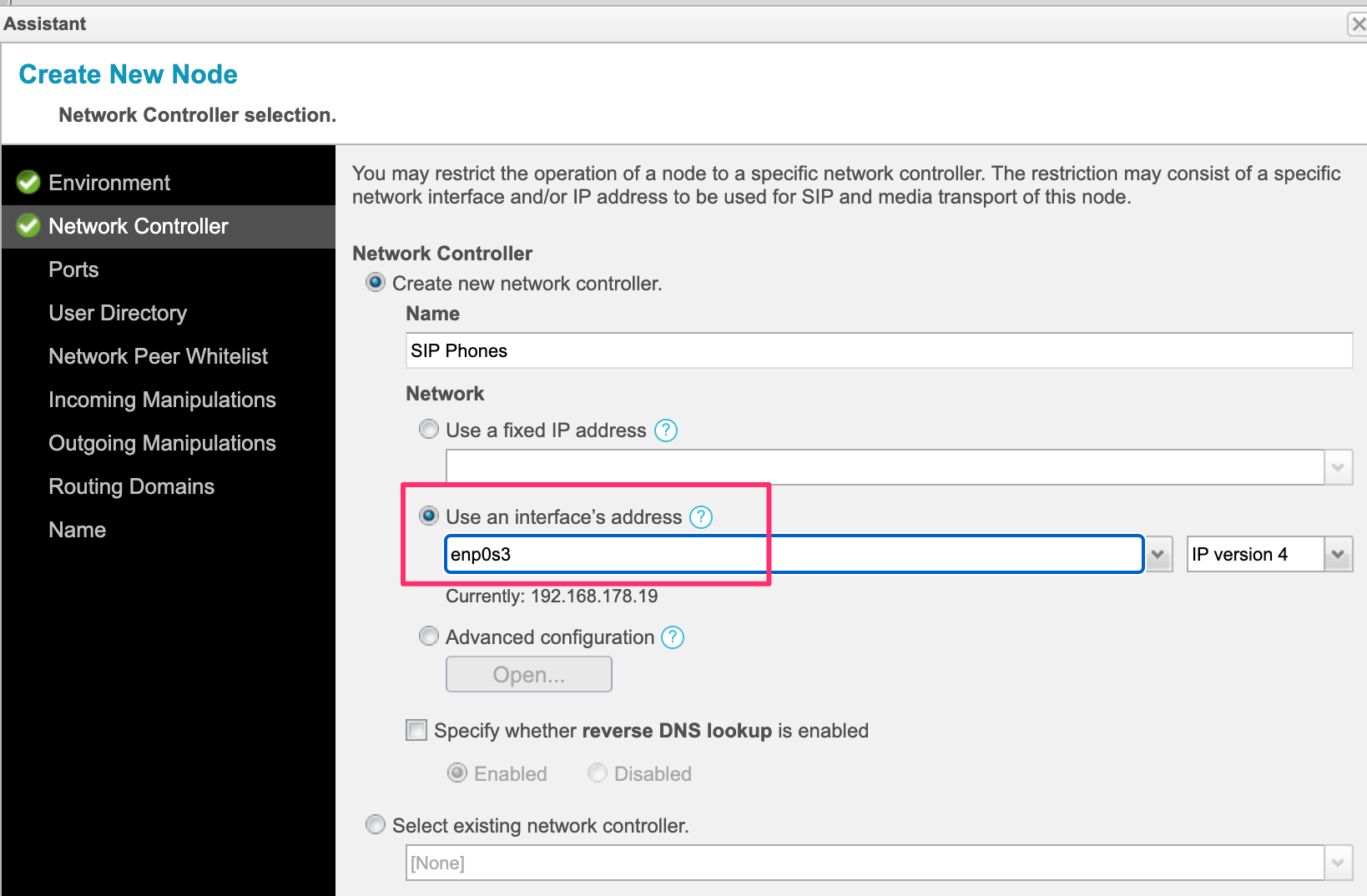

Select the Network Controller:

Setup

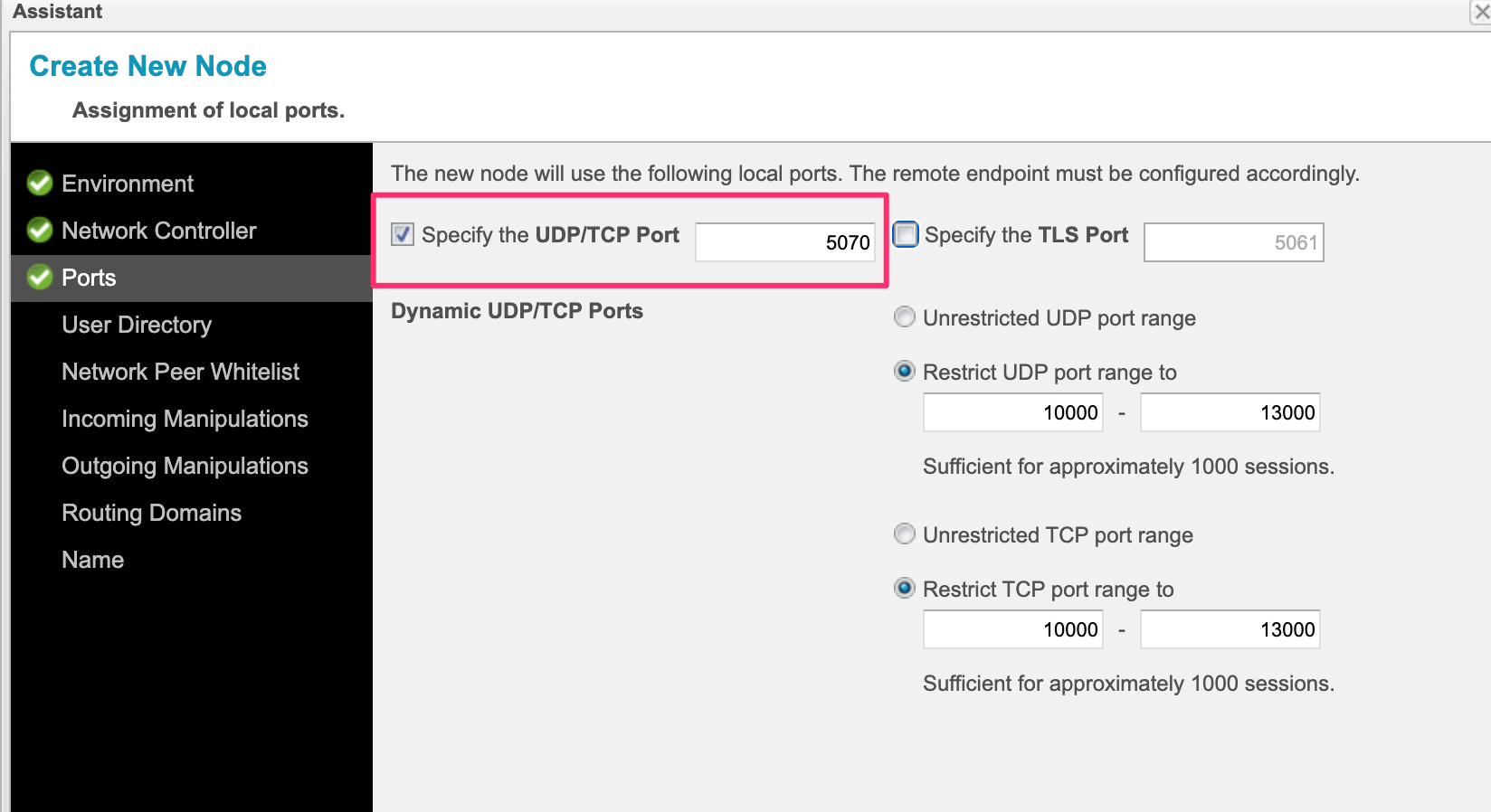

and choose a free port for the SIP Registrar

Setup

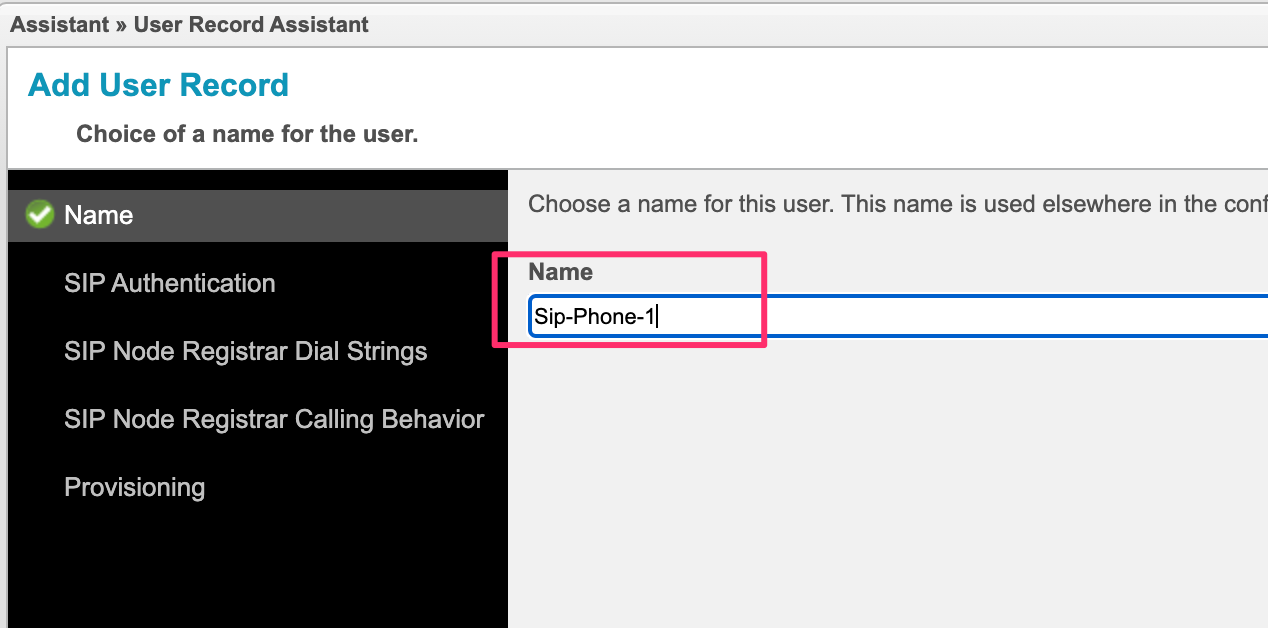

Now create a new directory for all SIP Users and add a user. Specify a name for the user

Setup

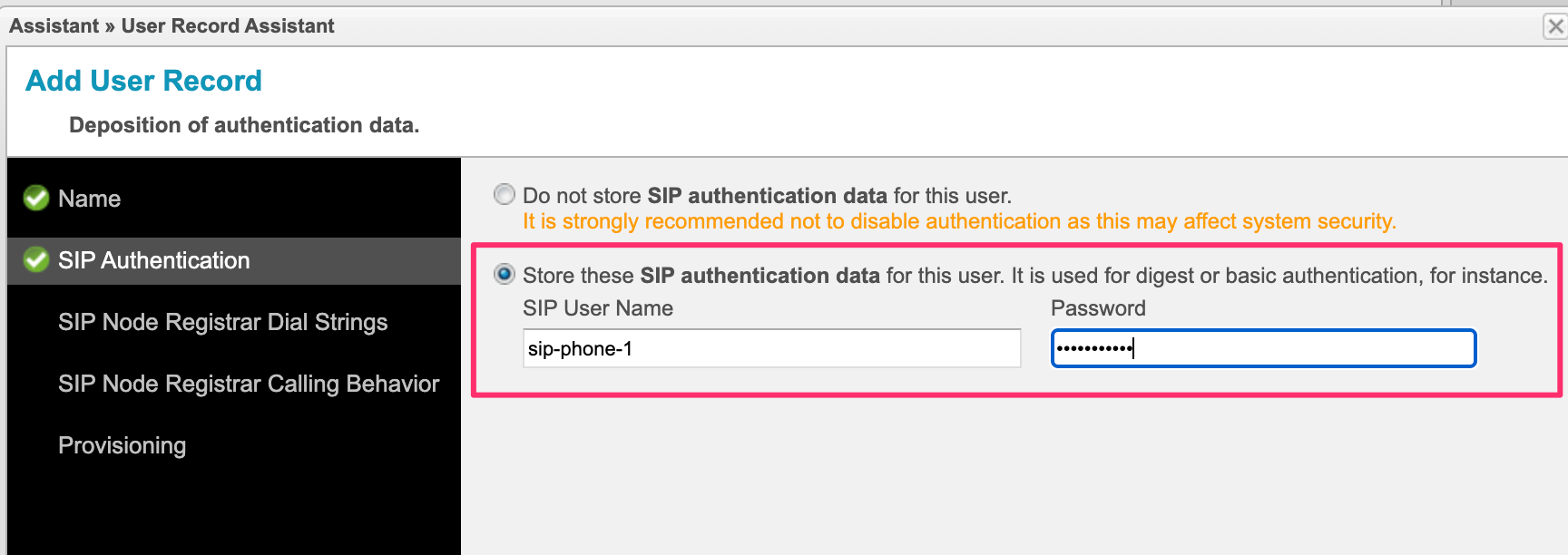

Now enter a username and password:

Setup

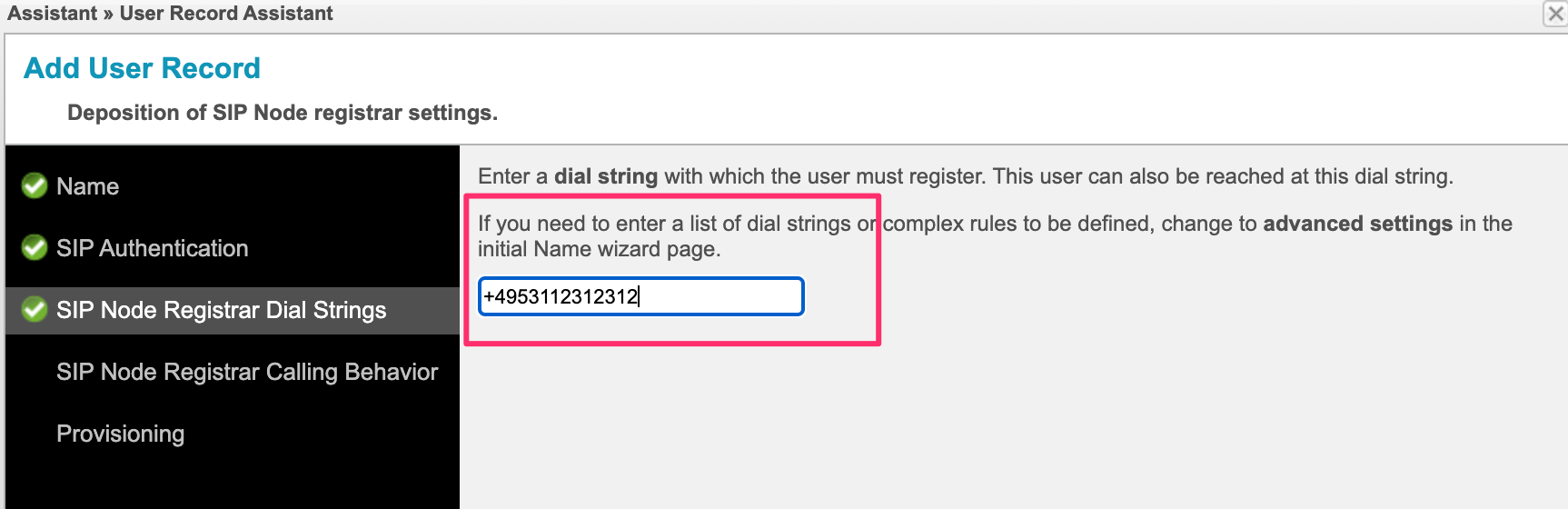

at the end, enter the phone number of the phone / user:

Setup

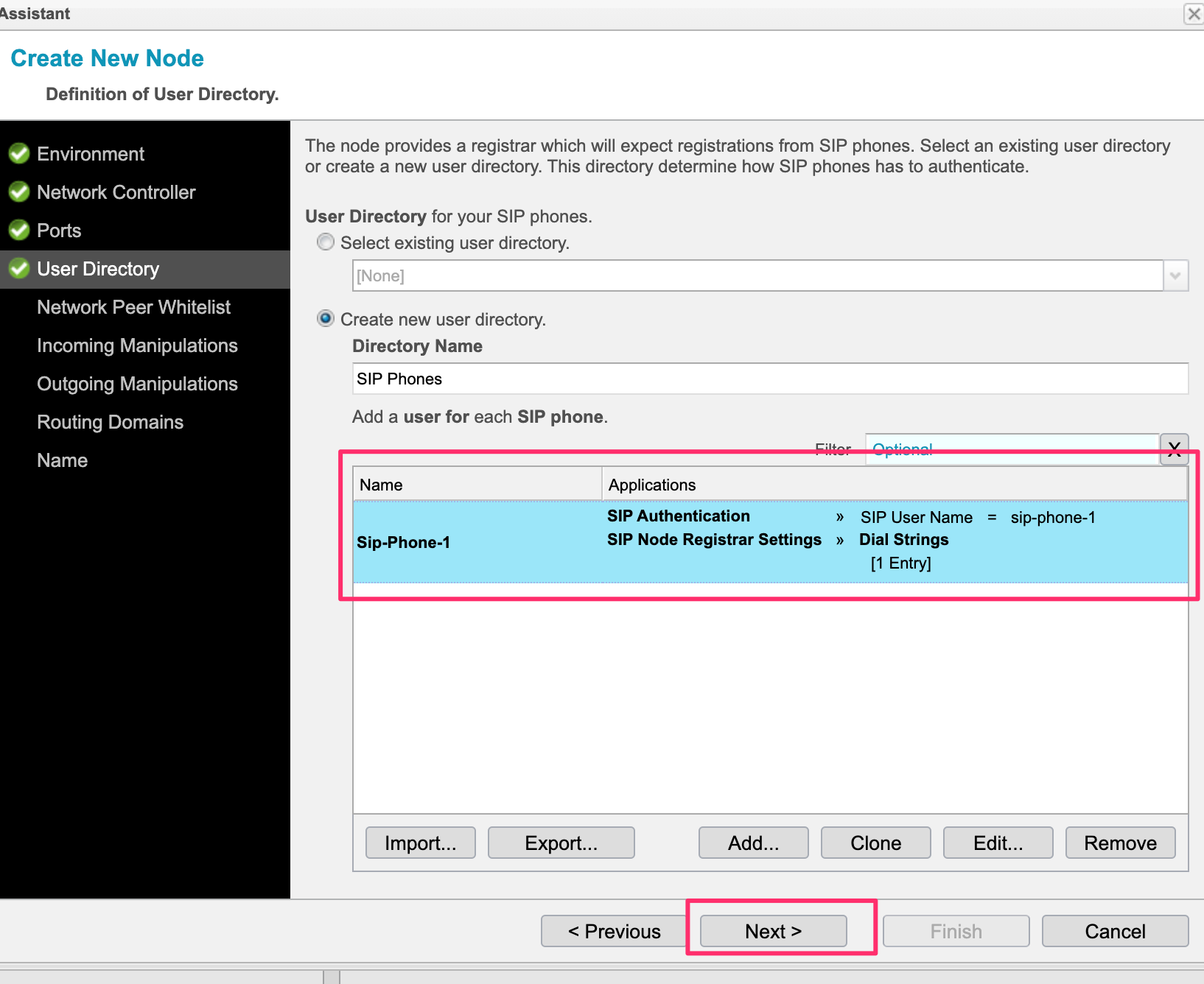

The user has been added to the directory. Add all phones / users to the directory.

Setup

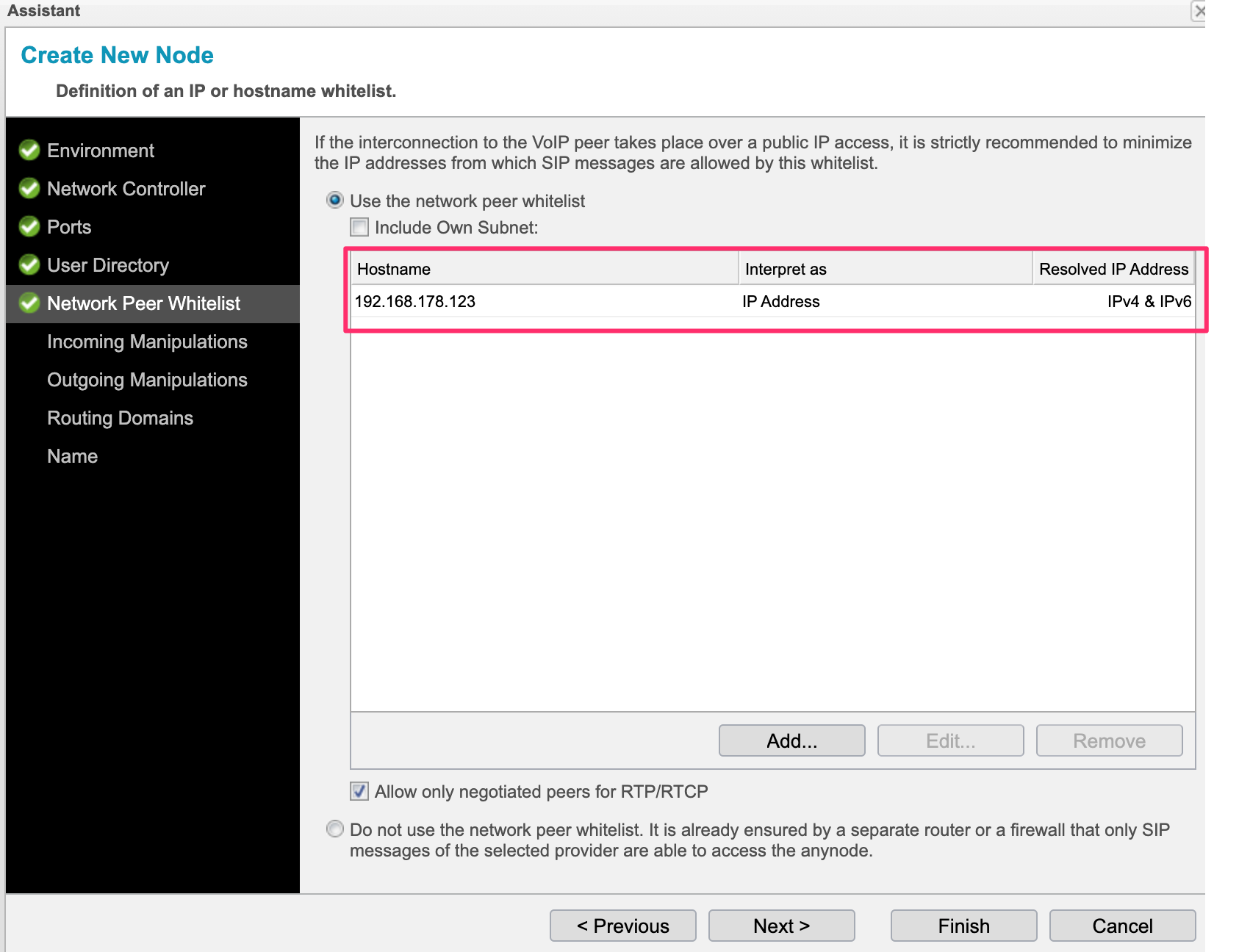

In the network whitelist, add the IP Address(es) of your DECT base station(s) and select finish.

Setup

Configuration DECT M300

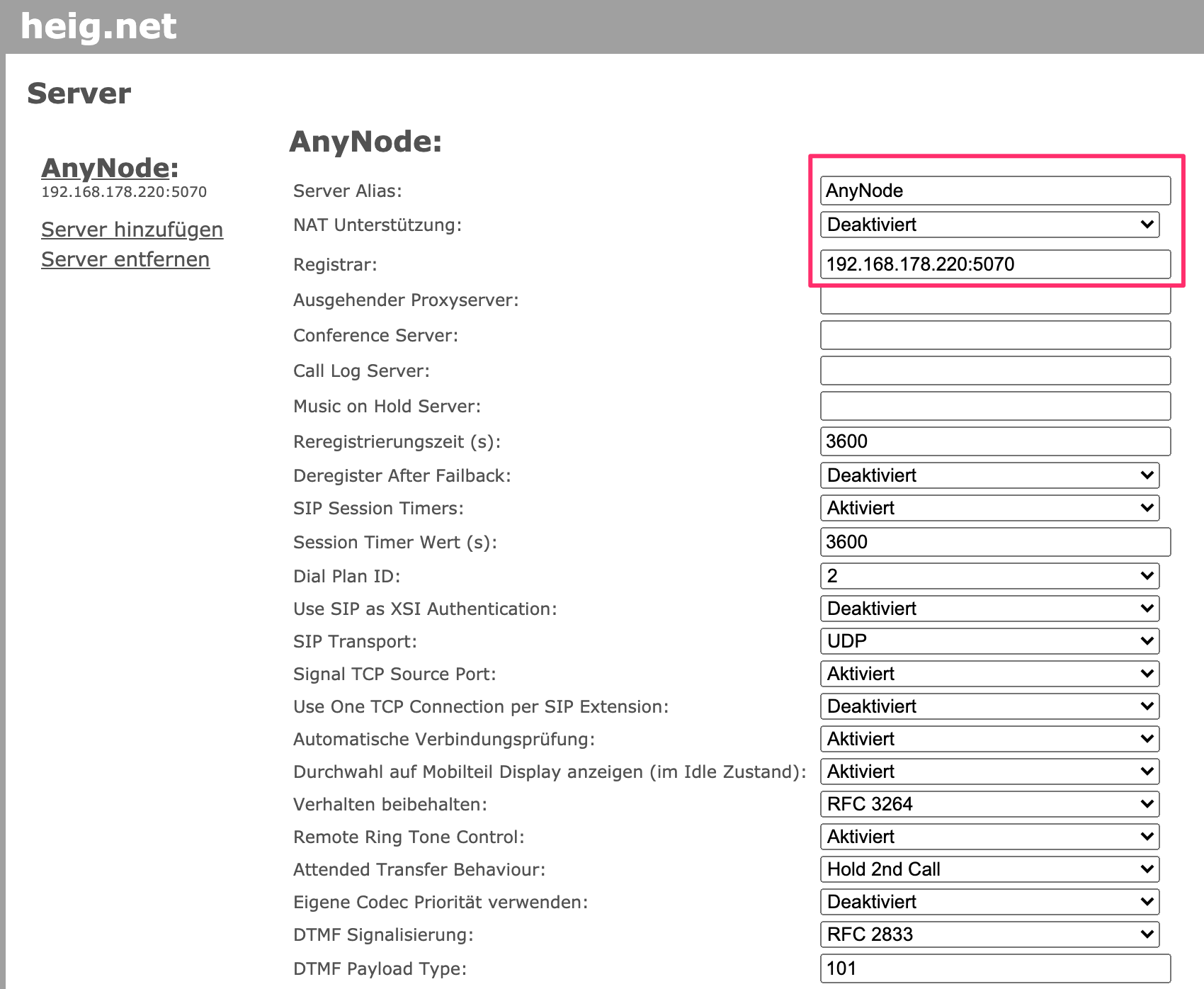

Now connect to your DECT base station and create a new server for the SIP Registrar:

Setup

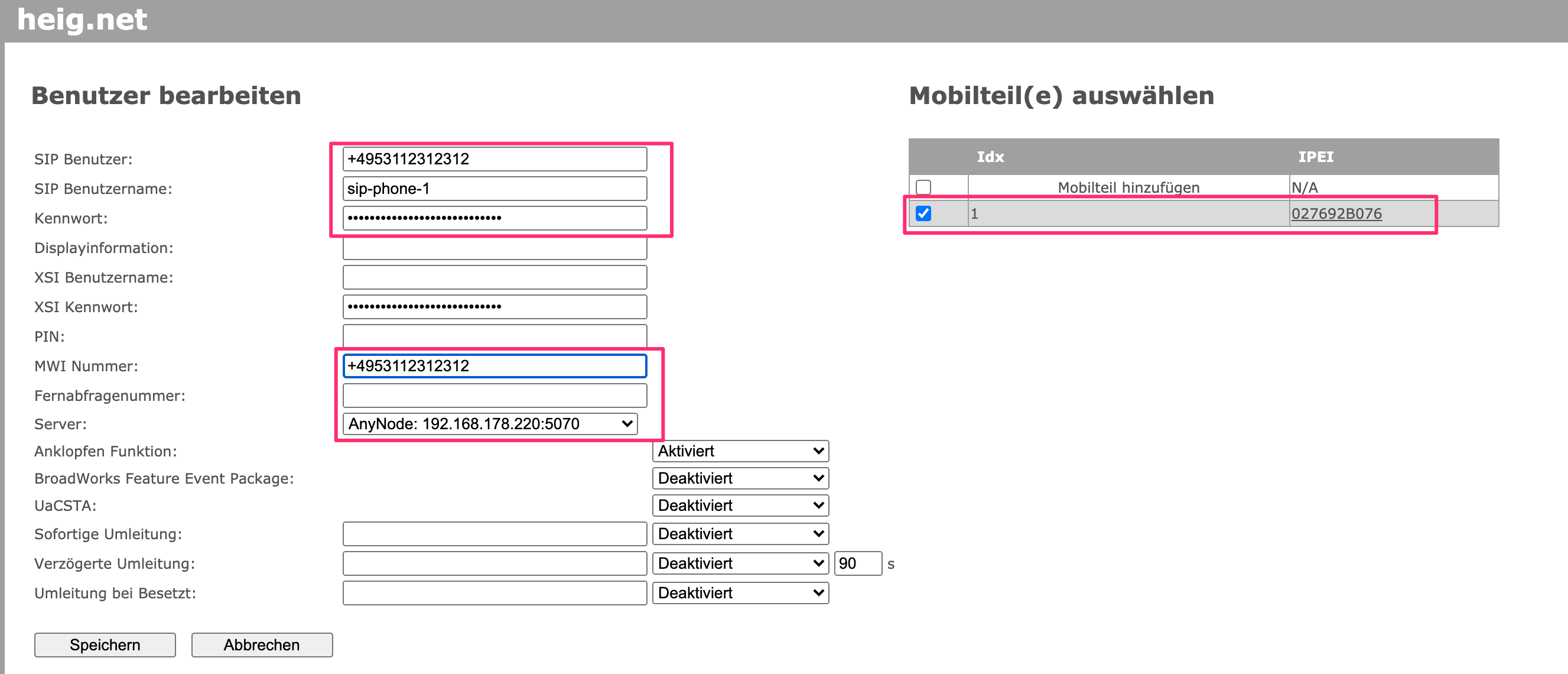

Switch to users and create a new user for the frist phone:

Add the information, that we setup in the previous setup:

  • SIP User
  • SIP Password
  • SIP Phonenumber

Setup

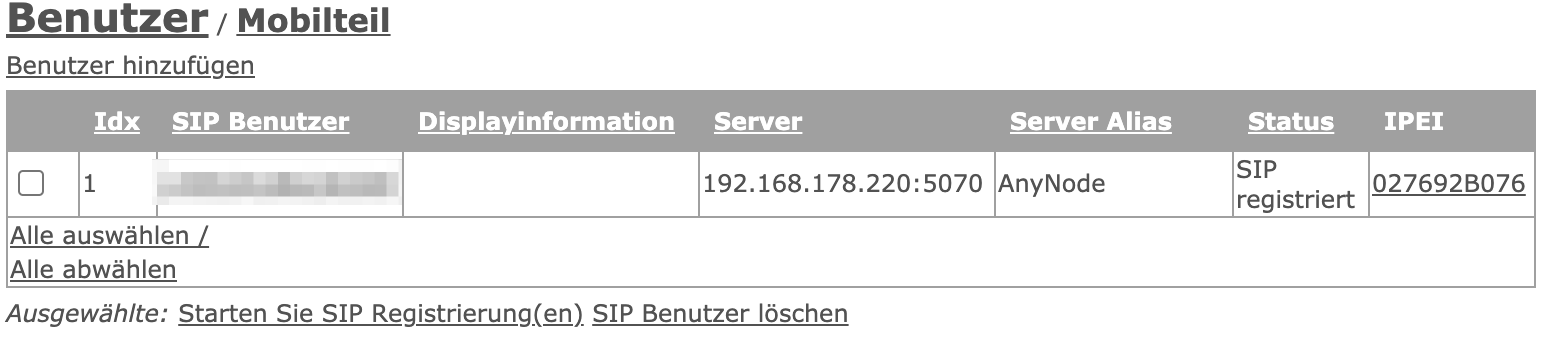

In the overview, you can see the status of the SIP account:

Setup

Setup routing

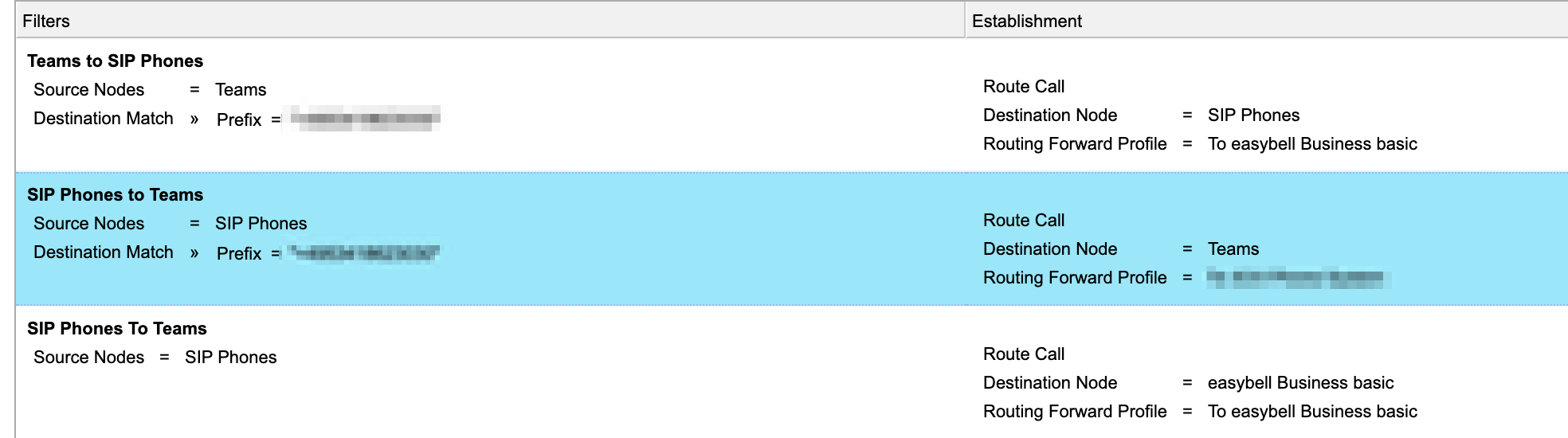

In the Routing Domain, setup tree routes:

  1. Route calls from MS Teams to the SIP Phones if the destination number matches
  2. Route calls from the DECT Phones to MS Teams if the destination prefix matches (all calls from Teams to the customers phone numbers, that are not used in MS Teams)
  3. Route all other calls from the SIP Phones to the PSTN

Setup

Finish

Phone

That it :) Now you can use your DECT Phones in combination with MS Teams Direct Routing and PSTN calls :)
